Road Construction Asphalt Paver Oriemac 6m RP603

  • >=1 Units
    $156,000.00
Paving Width:
6m
Model Number:
RP603
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 Negotiable
Report Suspicious Activity
Overview
Quick Details
Power(W):
128kw
Max. Paving Thickness:
350mm
After-sales Service Provided:
Video technical support, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service
Warranty:
1 Year
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Oriemac
Dimension(L*W*H):
6590*2500*4000mm
Weight:
18500kg
Certification:
CE/ISO
Product name:
Asphalt Paver
Color:
Yellow
Rated power:
128kW
Driving speed:
0-3km/h
Basic pave width:
2.5-6m
Hopper capacity:
14t
Moving Type:
other
Supply Ability
Supply Ability:
100 Unit/Units per Month Asphalt Paver
Packaging & Delivery
Packaging Details
Nude package ---- Container&RORO
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 20 To be negotiated
Product Description

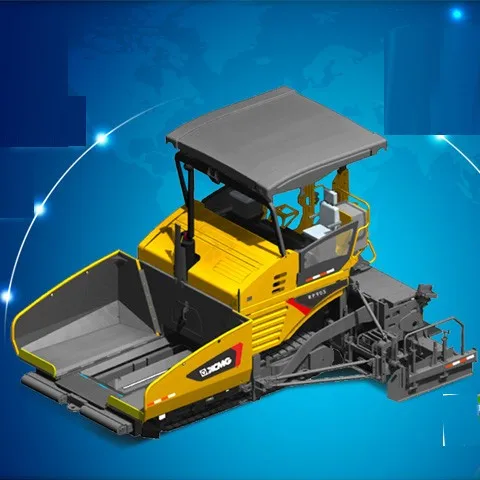

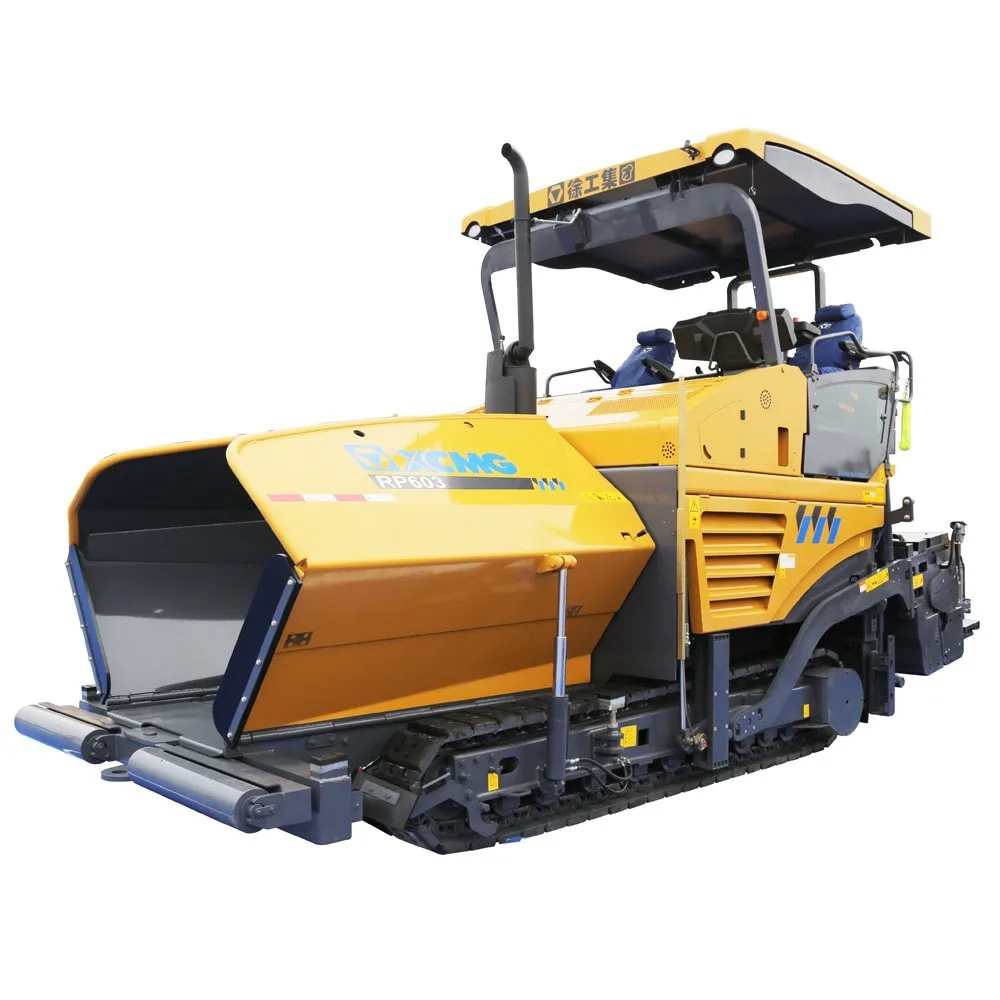

RP603 Asphalt Paver


Driving left and rightindependent drive, microcomputer control, paving speed constant speed automaticcontrol technology. The left and right conveyors use ultrasonic sensor controltechnology. The leveling system adopts electronic automatic levelingtechnology. The hydraulic telescopic screed adopts single-resonant helium andelectric heating technology, centralized lubrication system, shangchainew-generation four-valve SC7H175 water-cooled engine, and the splitting bladesadopt high. Wear-resistant alloy material.

Specifications:

Item
Parameters
Unit
Dimension(LxWxH)
6590×2500×4000
mm
Weight
18500-19000
kg
Driving speed
0-3
km/h
Rated power
128/2000
kw/rpm
Basic pave width
2.5-6
m
Max. pave width
6
m
Max. layer thickness
350
mm
Max. paving speed
20
m/min
Hopper capacity
14000
kg
Maximum laydown rate
400
t/h
Packing & Delivery

1.  Packaging Details:Nude package --- Container&RORO

2.  Port:                           Shanghai

3.  Lead Time:

Quantity(Units)
1-1
>1
Est. Time(day)
15-30
To be negotiated
