Wheel Excavator Oriemac SANY mini excavator SY80C-9S

FOB Reference Price:Get Latest Price
$20,000.00 - $30,000.00 / Acres | 1 Acre/Acres (Min. Order)
Model Number:
SY80C-9S
Machine Weight:
8.0T
Lead Time:
Quantity(Acres) 1 - 30 >30
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Bucket capacity:
0.32 m3
Operating Weight:
7920kg
Rated Speed:
4.4/2.4km/h
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Place of Origin:
Hunan, China
Brand Name:
SANY
Condition:
New
Moving Type:
Wheel Excavator
Maximum Digging Height:
7060mm
Maximum Digging Depth:
3290mm
Max Digging Radius:
1720mm
Certification:
CE ISO
Hydraulic Cylinder Brand:
IMPORTED BRANDS
Hydraulic Pump Brand:
IMPORTED BRANDS
Hydraulic Valve Brand:
IMPORTED BRANDS
Engine Brand:
IMPORTED BRANDS
UNIQUE SELLING POINT:
High operating efficiency
Power(W):
42kw
Engine model:
SANY D03S3
Rated power:
56.3HP(42kw)/2100rpm
Displacement:
2.77L
Supply Ability
Supply Ability:
20 Acre/Acres per Month
Packaging & Delivery
Packaging Details
Nude packing
Port
Shanghai, Tianjin, Qingdao
Lead Time :
Quantity(Acres) 1 - 30 >30
Est. Time(days) 25 To be negotiated
Video Description





Product Description

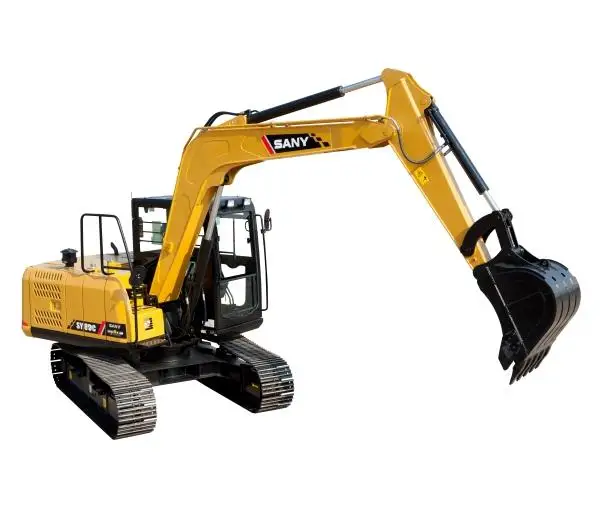

SY80C-9S small excavator adopts reinforced boom, reinforced bucket and high-strength track frame that make it very robust and reliable.







Engine
Engine model
SANY D03S3
Rated power
56.3HP(42kw)/2100rpm
Max.torque
190n.m@1600-2000rpm
Displacement
2.77L
Operation Range
Operating weight
7920kg
Max. digging height
7060mm
Max. dumping height
5155mm
Max. digging depth
4020mm
Max. vertical digging depth
3290mm
Max. digging reach
6240mm
Min. swing radius
1720mm
Height at min.swing radius
5550mm
Max.ground clearance of blade up
350mm
Max.depth of blade down
360mm
Dimensions
Transport length
6095mm
Transport width
2220mm
Transport height
2610mm
Upper width
2040mm
Blade height
405mm
Tail swing radius
1800mm
Min. ground clearance
380mm
Undercarriage/Working Device
Std. track shoe width
450mm
Bucket capacity
0.32GP-STD.
Track shoes(per side)
39
Carrier roller(per side)
1
Lower roller(per side)
5
Track gauge
1750mm
Boom length
3720mm
Arm length
1620mm
Performance
Travel speed
4.4/2.4km/h
Swing speed
11.5rpm
Gradeability
70%/35°
Ground pressure
33kPa
Tractive force
58kN
Bucket digging force
56kN
Arm digging force
38kN
Service Refill Capacities
Fuel tank
150L
Hydraulic tank
120L
Engine oil
9L
