BEIBEN Rc Mining Equipment Heavy Duty Mining Trucks for Sale

FOB Reference Price:Get Latest Price
$41,000.00 - $48,000.00 / Units | 1 Unit/Units (Min. Order)
Model Number:
ND13100D39J7
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Drive Wheel:
8x4
Capacity (Load):
11 - 20t
Horsepower:
351 - 450hp
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 3
Fuel Type:
Diesel
Engine Capacity:
> 8L
Gross Vehicle Weight:
31000
Place of Origin:
Inner Mongolia, China
Brand Name:
BEIBEN
Dimensions (L x W x H) (mm):
11730*2500*3484mm
Product name:
BEIBEN Rc Mining Equipment Heavy Duty Mining Trucks for Sale
Max speed:
90km/h
Kerb weight:
15500kg
Oil tank capacity:
300L fuel tank
Wheelbase:
1950+4600+1450mm
Engine:
WEICHAI Diesel engine
Horse power:
380HP/280KW
Displacement:
9.726L
Maximum drving speed:
75km/h
Color:
Milk White
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude packing, by container
BEIBEN Rc Mining Equipment Heavy Duty Mining Trucks for Sale
Port
SHANGHAI,QINGDAO,TIANJIN
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated





Product Description

BEIBEN Rc Mining Equipment Heavy Duty Mining Trucks for Sale

Drive type

8x4

Chassis model

ND13100D39J7

Cabin

NG80, one sleeper

Engine

Type: Diesel 4-stroke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

WP10. 380E32

WEICHAI Diesel engine

MAX Horsepower

380HP/280KW

Displacement

9.726Liter (Euro 2 standard)

Max torque:

1500NM@1200-1600rpm

Bore/stoke:

126mm/130mm

Gear box

Max torque:

2000N.M

Model:

12JS200T

Speed:

12 forward gears, 2 reverse gears

Front axle

Double-shoe pneumatic brake, non-driving steering axle

Tandem

Double-shoe pneumatic brake, casting, double reduction driving axle

Clutch

Single dry frictional disc, Hydraulic boosting

Brake

Service brake: Brake gap can be adjusted automatically, double circulation air brake system

Parking brake: Potential springs pressing on middle and rear wheels

Engine brake: Engine exhaust brake(EVB)

Steering

TAS85, the driver sits at the left-hand side

Electric Equipment

Operating voltage:

24V negative grounded

Starter:

24V,5.4KW

Alternator

28V,758W

Battery voltage

12V/135Ah, cigar lighter

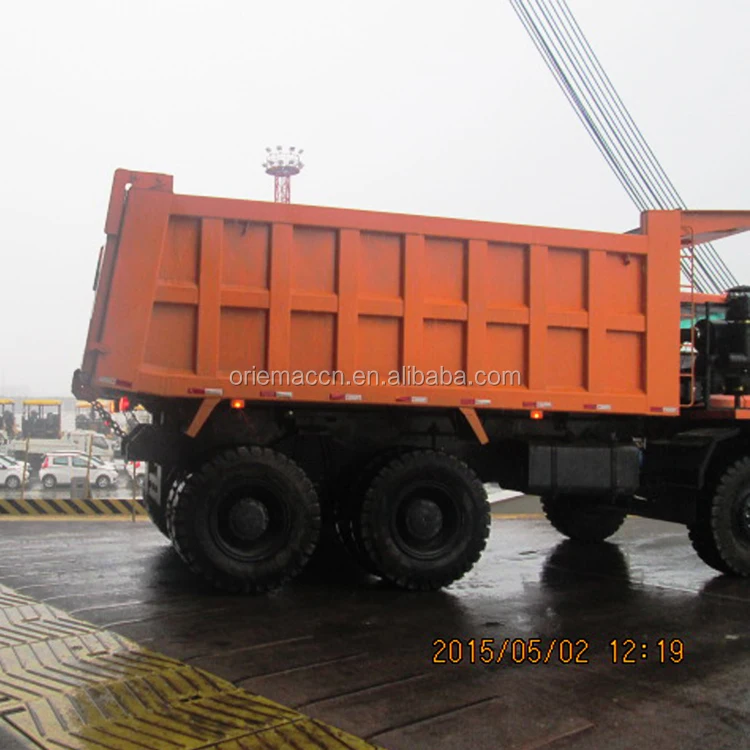

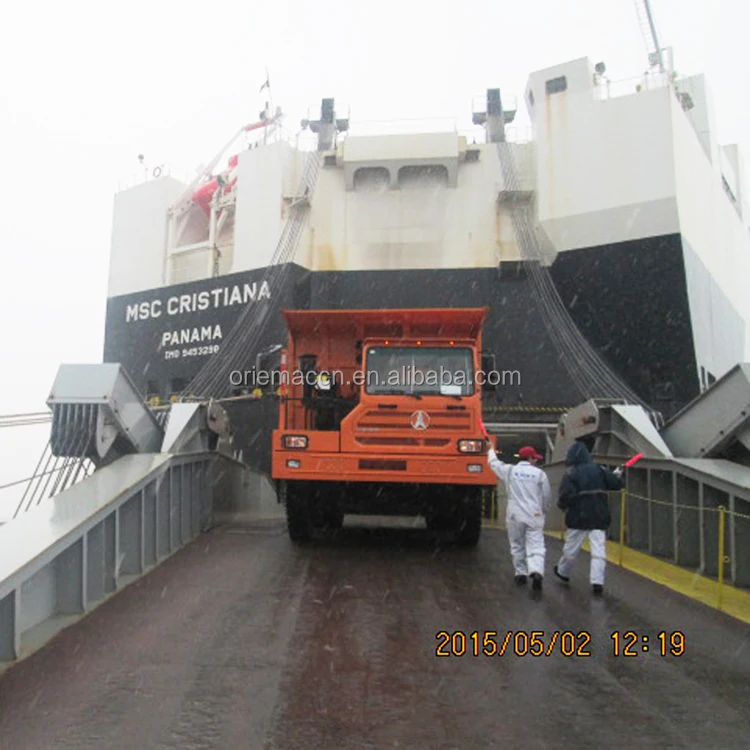

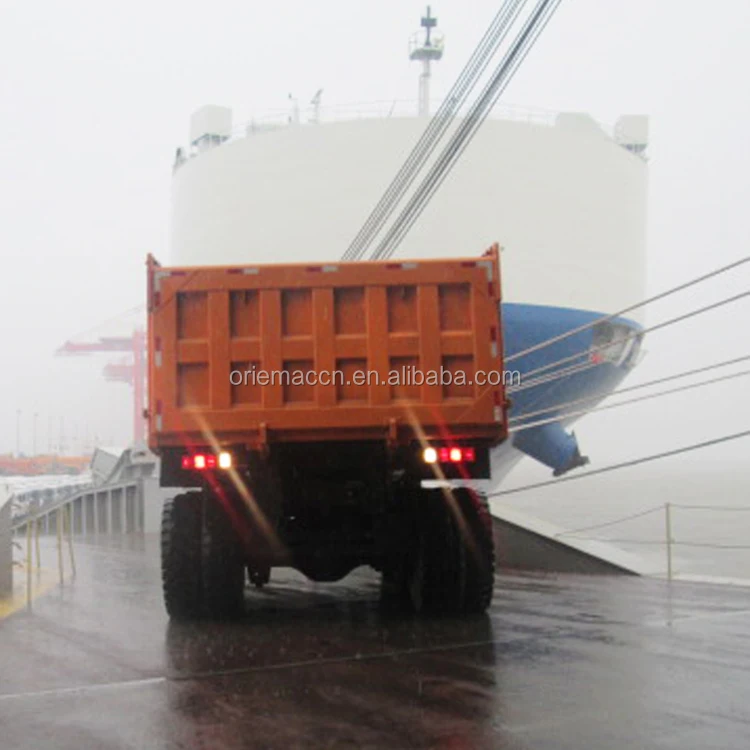

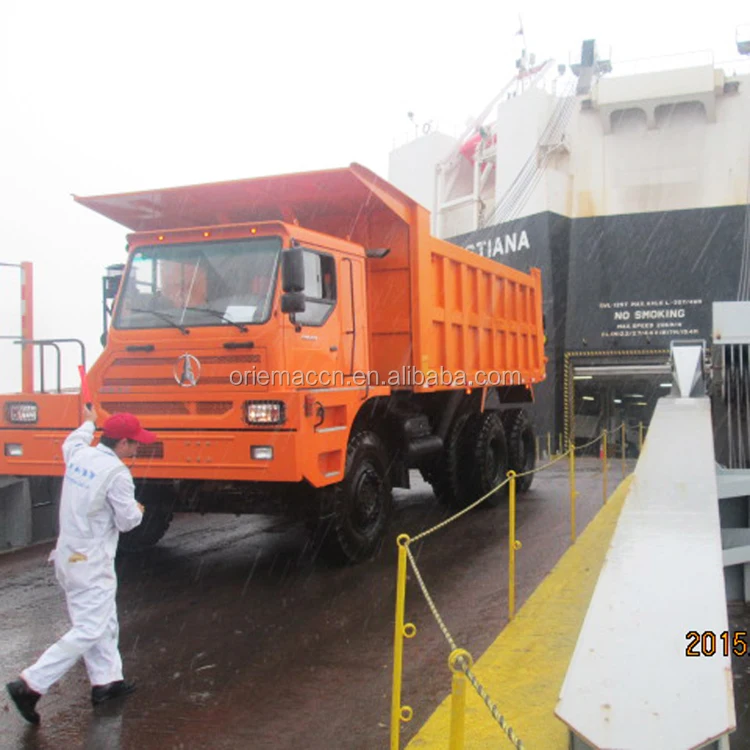

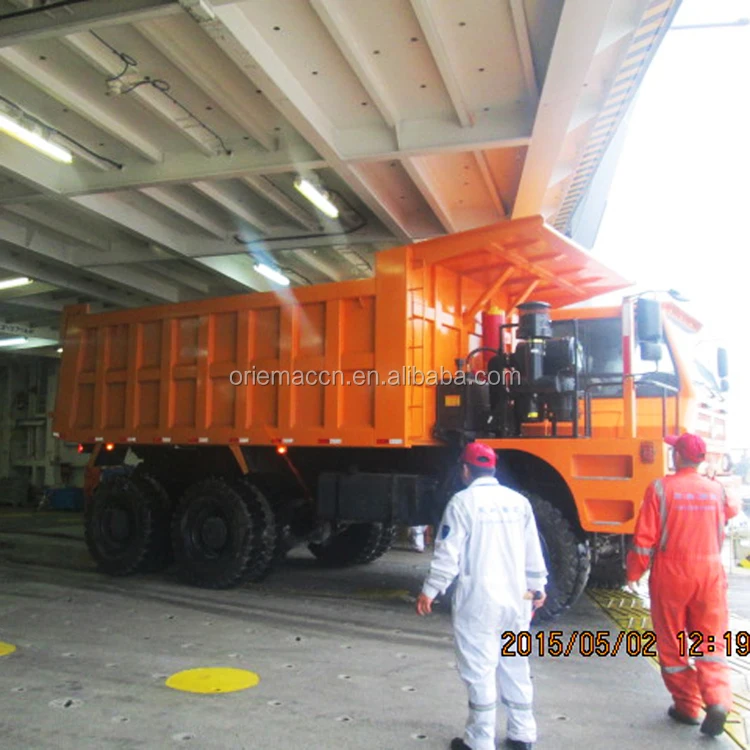

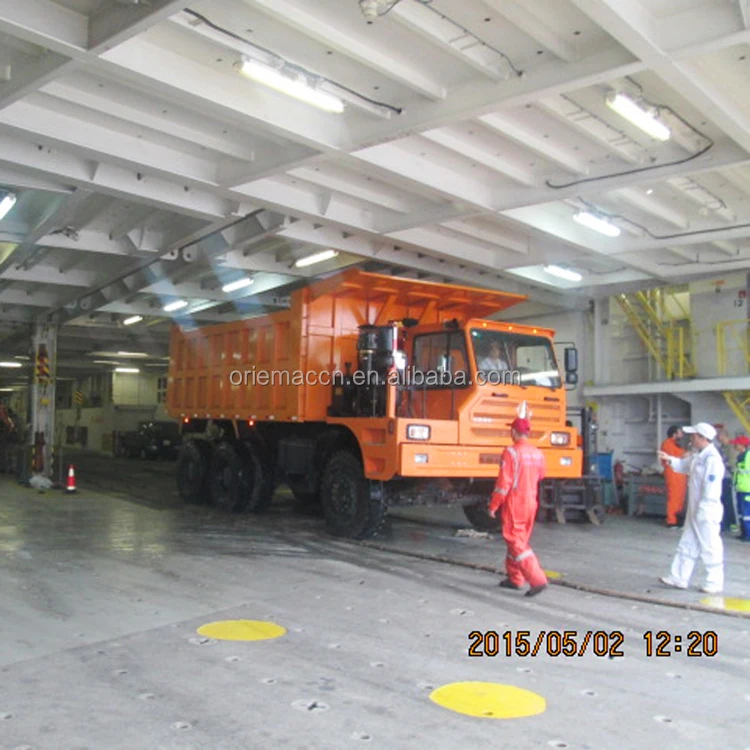

 Photos of BEIBEN 8x4 Mining Dump Truck 380HP Mining Equipment for Sale
