Chinese Top Supplier Cheap Price SEM SEM822 Crawler Bulldozer For Sale

  • >=1 Units
    $129,000.00
Model Number:
SEM822
Dozing Capacity:
6.4cbm
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Machine Weight:
23680kg
Dimension(Long * Breadth * High):
--
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Place of Origin:
Shandong, China
Brand Name:
SEM
Condition:
New
Moving Type:
Crawler Bulldozer
Color:
Yellow
Machine weight:
23680kg
Bucket capacity:
6.4cbm
Blade Width:
3720 mm
Max. Blade Digging Depth:
563mm
Ground Pressure:
70kPa
Ground Clearance:
394mm
Engine:
WD10G178E26
Rated power:
162kW
Supply Ability
Supply Ability:
100 Unit/Units per Month wheel loader
Packaging & Delivery
Packaging Details
Nude package -- Container&Ro-Ro
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description

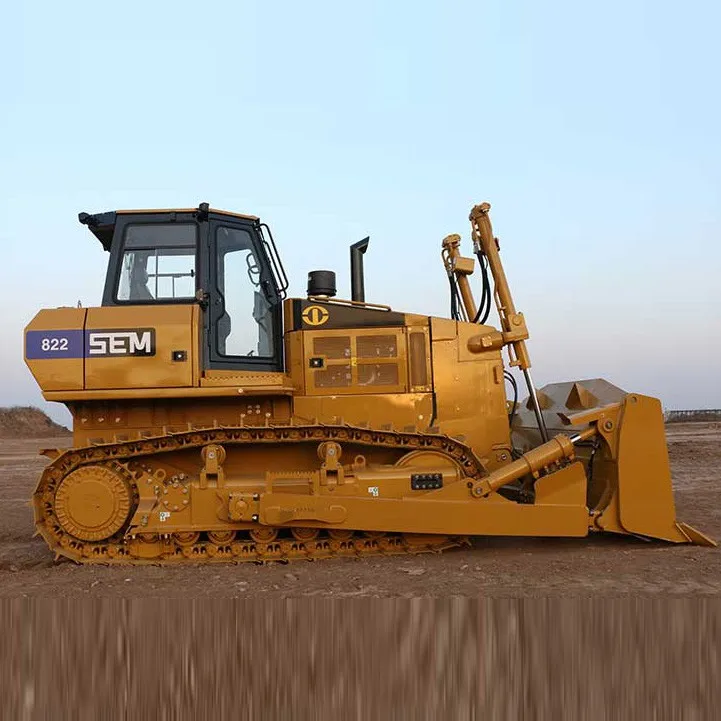

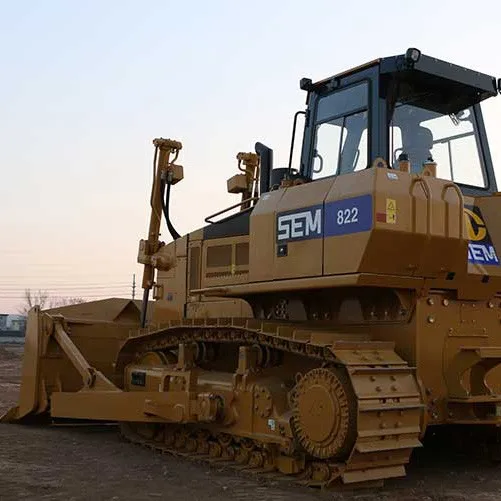

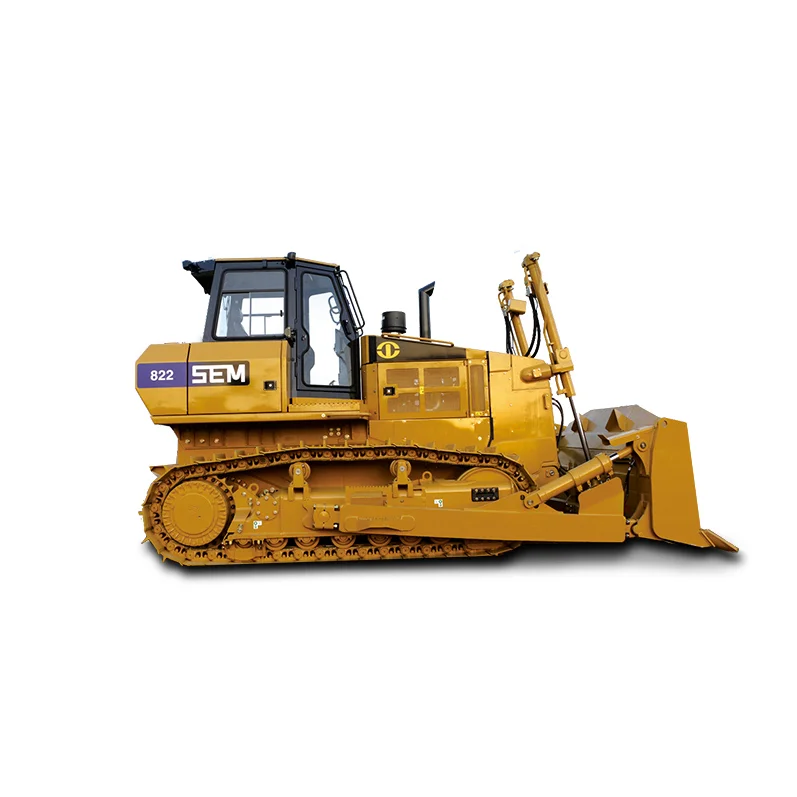

SEM822 Construction Machine Bulldozer


Hydrostatic Drive System

Hydrostatic drive with electronic control technology

Maintenance costs are reduced by 60% when compared competitors with torque converter and transmission design.

Counter-rotation and power turn feature delivers exc maneuverability on job sites.


Comfortable Operation

Counter rotation-Tracks counter rotate to provide best in class maneuverability.

Powered turn-Machine maintains full power through turns to increase productivity.

Cruise control-Operators can retain previous speed settings which makes operation easily

Multi-function joystick allows for counter-rotation, powered turn and cruise control.

Pilot joystick control provides comfortable precise blade operation.


Semi-Universal Blade

SU blade combines the excellent penetration of the S blade and the high production capacity of the U blade.

Designed for superior load retention and penetration in tightly packed materials.

L-shaped push arms bring the blade closer to the machine, providing excellent maneuverability, balance and blade penetration.

Blades feature a strong box section design, made from high tensile strength steel to stand up to the most severe applications.


Undercarriage

Undercarriage is provided by a world class supplier ensures high reliability and resistance to wear.

Carrier rollers track rollers and idle rollers are all maintenance free.

Planetary final drive design delivers increased torque ratio for higher transmission effi ciency and lower maintenance cost.

Durable final drive bearings and multiple wet disc brakes provide reliability, reduce system heat and extend overall life.


Structures

Machine structures are analyzed using Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to identify and protect high stress areas.

Advanced structure welding technique, relieving welding stress.


Modular Radiator

New advanced cooling system designed to meet -43°C to +50°C ambient temperatures capability.

Modular designed radiator, easy to maintain remove and repair.

Radiator grill provides better heat dissipation, easy access for maintenance.


Maintenance

Electronic Control Module (ECM) fault diagnosis system, automatic diagnosis of eight key parameters.

Monitoring system provides three levels of alarm, to indicate fault diagnosis.

Hydrostatic system has longer service interval (2000 hrs), reduces maintenance time by 50%.

Implement valve mounted outside of hydraulic tank provides easy access to check and service.


Item
Parameters
Unit
Main Specifications
Operating Weight
23680
kg
Ground Pressure
70
kPa
Ground Clearance
394
mm
Max.Slope
30
°
Engine
Model
Weichai WD10G178E26

Rated Power
162
kW
Working Tool
Blade Type
SU

Blade Capacity
6.4 (U 7.5  )
Blade Width
3720/U 4015
mm
Blade height
1511/U 1420
mm
Max. Blade Digging Depth
563
mm
Max. Blade Lift Ground Clearance
1140
mm
Max.Output Rimpull
350
kN
Maximum Digging Depth Of Ripper
650
mm
Maximum Clearance Under Tip
640
mm
Powertrain
Type
Electronic control, Dual-path, Hydrostatic Drive

Travel Speed- F/R
0 - 11.5(Infi nitely Variable Speed Control)
km/hr
Steering & Brake
Hydrostatic Steering, Wet, Multiple-Disc Brakes
Minimum Streeing Radius
4225(Counter-rotated avaliable)
mm
Undercarrige
Track Shoe Width
560
mm
Track Shoe Quantity
40
piece
Length Of Track On Ground
2948
mm
Track Gauge
2000
mm
Track Roller Quantity
7/Side

Carrier Roller Quantity
2/Side

Hydraulic System
Type
Pilot Control

Implement Hydraulic System Pressure
19
Mpa
Service Refi ll Capacities
Cooling system
45
L
Hydrostatic Oil
62
L
Implement Oil
110
L
Fuel
460
L
Pivot Shaft Case (each side)
0.8
L
Packing & Delivery

1.  Packaging Details:Nude package

2.  Port:                           Shanghai

3.  Lead Time:

Quantity(Units)
1-1
>1
Est. Time(day)
20-30
To be negotiated
