Heavy Construction Equipment SEM 5 ton SEM653D Front End Wheel Loader Price

  • >=1 Units
    $46,000.00
Rated Load:
5000kg
Model Number:
SEM653D
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Machine Weight:
16640kg
Dimension(Long * Breadth * High):
8085*2963*3463mm
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Free spare parts
Condition:
New
Brand Name:
SEM
Place of Origin:
Shandong, China
Type:
Front Loader
Moving Type:
Wheel Loader
Certification:
CE ISO9001
Color:
Yellow
Machine weight:
16640kg
Bucket capacity:
2.6-5.5cbm
Dump clearance:
3102mm
Breakout Force:
177kN
Engine:
WD10G220E23
Rated power:
162/2000kW/rpm
Wheel Base:
3200mm
Supply Ability
Supply Ability:
100 Unit/Units per Month wheel loader
Packaging & Delivery
Packaging Details
Nude package -- Container&Ro-Ro
Port
Shanghai
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Product Description

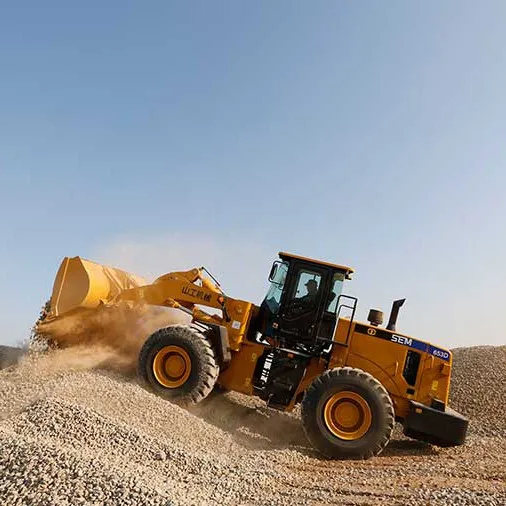

SEM653D Construction Wheel Loader


Engine


Low speed engine and E-fan make fuel consumption better

3 stage air cleaner with 93% efficiency pre cleaner reduce earlier wearing, high efficiency fuel filter make engine work in good condition

Efficient Hydraulic System

Excellence modulation performance implement valve with mechanical control, make operation more accurately

Full hydraulic load sensing steering and flow shared system save fuel and raise productivity, hydraulic cycle time is only 9.3s

Word class pump and technology lines routing deliver better reliability


Operator Station

Mould formed cab with all trims design and more vents with HVAC make operator feel better

First class premium seat with suspension adjustable, arm rest and safety belt. Up-down, forward and reverse adjustable

Slide window, fresh air inlet system make environment better


Drivetrain

SEM made in house counter shaft transmission reliable and high efficiency, core components reliable improvement

One stage and 3 element torque converter deliver higher efficiency

1st gear higher draw bar and 2nd gear faster speed make penetration easier and move material faster


Cooling System

High performance aluminum cooling package suitable for most of severe applications

Oil cooler and radiator parallel design can balance heat load inside and suitable diversity applications

Damping design reduce vibration failure


Solid Structure

Validated by technology FEA( Finite Element Analysis) and OMSA(On Machine Stress Analysis)

Middle articulation frame less work space needed and reduce tire resistance

Large spread hitch design in acticulation section can stand more load


Serviceability

Quick pressure test ports on HYD and brake lines make diagnose easier

Large wing hood door make service easier, approach to air cleaner, fuel filter and oil filter

Large spread hitch design in acticulation section make operator easier to approach


Safety

Slope switch make machine approach to hopper and pile in slope safety and easier

High decibel Beacon and backup alarm make person around easy to attention

3 stage alarm system on panel

3 touch points entering and exiting cab make operator more safe


Machine Applications

Landscaping, building, sewer/water in, local construction

Ready mix cement/concrete products, quarry/stone, clay, recycled aggregate, sand and gravel

Highway, street, tunnel, airport, residential commercial


Item
Parameters
Unit
Main Specifications
Rated operating load
5000
kg
Bucket capacity
2.6-5.5
Machine weight
16640
kg
Wheel base
3200
mm
Overall Dimension
8085*2963*3463
mm
Max. Drawbar Force
171
KN
Breakout Force
172
KN
Dump Clearance
3102
mm
Transmission
Transmission Type
Countershaft, power shift
Transmission Gears
F4/R4
Torque Converter Type
Single stage, 3 elements
Maker & Type
Tr200
Forward I/Reverse I
7.9/7.9
Forward II/Reverse II
14/14
Forward III/Reverse III
22.9/22.9
Forward IV/Reverse IV
39.4/39.4
Engine
Model
WD10G220E23

Rated Power
162
kW
Rated Speed
2000
r/min
Displacement
9.7
L
Implement Hydraulic
Implement System Type
Open center

Boom Raise Time
5.1
s
Hydraulic Cycle Time
9.3
s
System Pressure Setting
18
Mpa
Brake System
Service Brake
Dry&caliper,air to oil control

Parking Brake
Drum/shoe


Steering System
System Type
Shared flow

Steering Pump Type
Gear pump

System Pressure Setting
16
Mpa
Steering Angle (L/R)
38±1
°
Tires
Size
25.5-25
Type
PR
Layer
16
Textured Type
L-3/E-3
Packing & Delivery

1.  Packaging Details:Nude package

2.  Port:                           Shanghai

3.  Lead Time:

Quantity(Units)
1-1
>1
Est. Time(day)
20-30
To be negotiated
