Piling Machinery Diaphragm Wall Grab XTC Series Trench Cutter

FOB Reference Price:Get Latest Price
US $40,000-85,000 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Oriemac
Model Number:
XTC80-55
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
Diaphragm Wall Grab
Application:
Building
Color:
Yellow
Bare Weight:
95t
Power type:
Diesel
Certification:
ISO9001/CE
Engine:
QSM11
Warranty:
1 Year
Condition:
Brand new
Wall thickness:
800~1200 mm
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude Packing or by Container.
Port
Shanghai
Lead Time :
25 working days after receiving deposits
Product Description

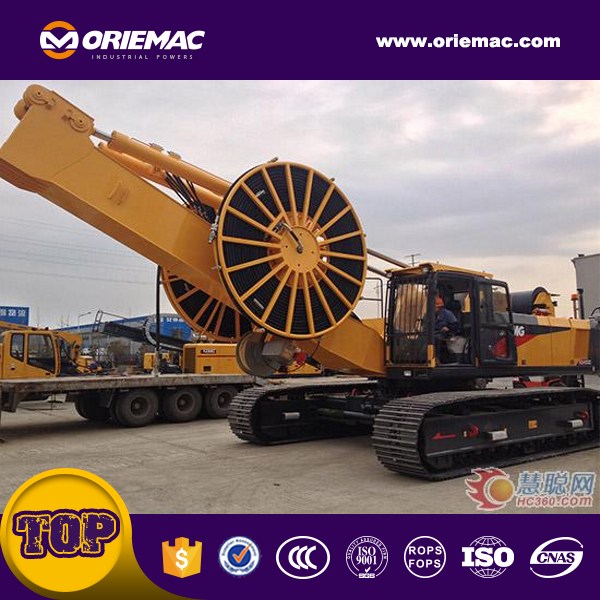

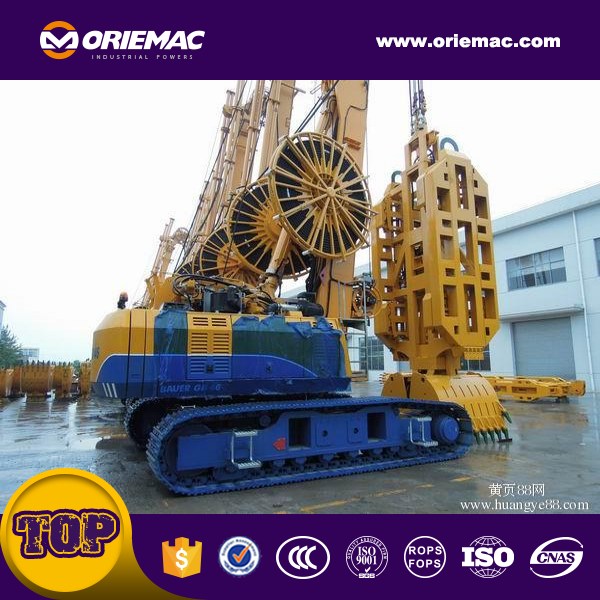

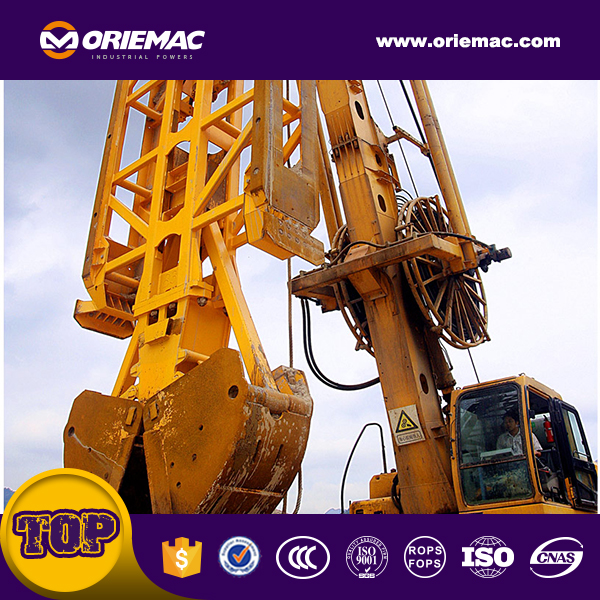

Piling Machinery Diaphragm Wall Grab XTC Series Trench Cutter



 Feature:

1. Front/rear single rope and dual winches, which substantially improves the rope's,longest 80m.

2. The specific extra-wide chassis manufactured with XC's mature technologies ,having large swiveling bearing,provides super stability. Max. Distance between tracks: 4900mm.

3. The slewing mechanism is adopted with imported elements, super large slewing support improve the reliability of the grab. The platform is designed through 3D software-aided force analysis, stress analysis and rational layout.

4. The control system of Double winch equipped with an encoder ensures the accurate synchronization of double winches reduces the frequency of synchronized adjustment and increases the construction efficiency.

5. Adopting import double-speed gear box, main winch can accurately control trench cutter's quick up-down motion and low speed feed. Electro-hydraulically proportional follow-up control system can ensure the synchronism of slurry hose drum, hydraulic hose drum and main winch.

6. Air lift reverse circulation slagging mode, which can reduce the consumption of fuel & construction costs effectively.

7. Self-developed milling wheel-drive structure, easy to get the spare parts, low cost and short time of maintenance.

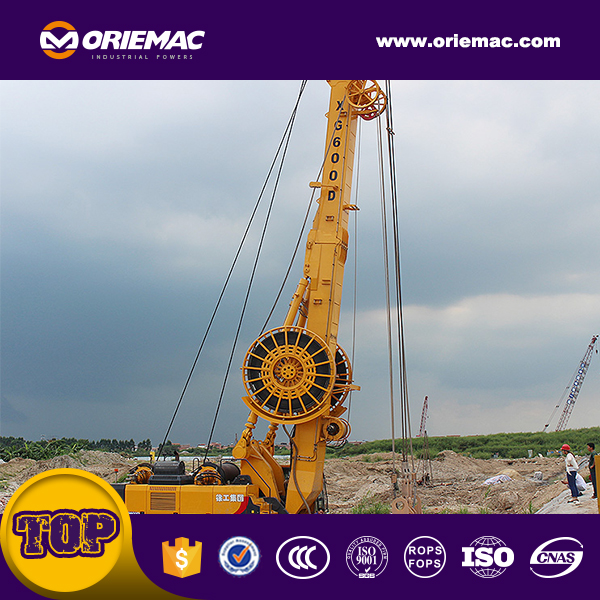

8. With the convenient function‘one machine, two configurations’, which can achieve universal with XG600D.



Product parameters

ProjectUnitParameter
Working parameter
Wall thickness(mm)800~1200
Wall depth(m)55
Main data
Max. hoisting force(kN)600
Max. hoisting speed(m/min)40
Max. torqe(kN.m)2x80
Rotary speed(r/min)0~25
Slag discharge way-Air
Mud pump ability()-
Power parameter
Engine model- QSM11
Engine rated power(kW/r/min)298/2100
Undercarrige
Max. travelling speed(km/h)1.2
Max. grade ability(%)30
Max. clearance(mm)450
Track shoe width(mm)800
Distance between tracks(mm)3500~4900
Working condition
Total lengh(mm)10805
Total width(mm)4900
Total height(mm)18914
Working radius(mm)4800~5800
Transportation condition
Total lengh(mm)16120
Total width(mm)3500
Total height(mm)3800
System parameter
Max.system pressure(MPa)32
Max. system flow(L/min)760
Weight parameter
Bare weight(t)95
Frame weight(t)36~40



More models for sale !!!

1.jpg2 (2).jpg7.jpg10.jpg

Packaging & Shipping

Packing

Nude packing or by Container.

Spare parts by sea, air, DHL, UPS, or as customers' requirements.

Delivery Time: 10 working days after comfirmation.Backhoe Loader CHANGHUI WZ30-25 Container1.jpg
