high quality 3.5ton telescopic handler for sale forklift XC6-3507

  • >=1 Units
    $60,900.00
Model Number:
XC6-3507
Rated Loading Capacity:
3500kg
Lead Time:
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
Oriemac
Type:
Powered Pallet Truck
Power Souce:
Diesel Engine
Max. Lifting Height:
7150mm
Min. Lifting Height:
600mm
Fork Length:
1200mm
Fork Width:
150mm
Overall Dimensions:
4995*2250*2470mm
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Product name:
high quality 3.5ton telescopic handler for sale forklift XC6-3507
machine weight(±5%):
7850kg
Engine power rate:
70kW
Payload under max. extension:
1250kg
Max. outreach:
3600mm
Max. traction force:
≥55kN
gradeability:
≥40°
Max. travel speed:
30km/h
Turning radius:
≤3880mm
Wheelbase:
2985mm
Supply Ability
Supply Ability:
200 Unit/Units per Month
Packaging & Delivery
Packaging Details
Nude packing
high quality 3.5ton telescopic handler for sale forklift XC6-3507
Port
SHANGHAI,QINGDAO,TIANJIN
Lead Time :
Quantity(Units) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Product Description
high quality 3.5ton telescopic handler for sale forklift XC6-3507
1. XC6 is the latest Oriemac' agricultural version telehandler which features the highest operation simplicity, safety, and efficiency.
2. The panoramic cab and the Oriemacs visual identity appearance design feature good fashion and elegance.
3. The integrated static-pressure stepless variable drive system realizes full speed range drive and stable driving.
4.  The four-wheel drive and multiple steering modes (including four-wheel, two-wheel, and crab steering modes) realize super-strong off-road capability and adapt to diversified working conditions.
5. The inching control technology and special overload control system are applied to achieve high operation safety and reliability.
6. The electro-hydraulic proportional control for the working system features accurate, stable, and efficient operations.
7. The advanced human-machine interactivity, intelligent heat dissipation system, and dedusting control system embody high technologic sense and intelligence.
Description
Unit
Parameter value

Engine Power
kW
70



Overall weight (±5%)
kg
7850

Overall dimensions (±2%)
mm
5065×2250×2470

Maximum traveling speed
m/h
30

Turning radius
mm
3880

Maximum effective load
kg
3500

Effective load at maximum extending length
kg
1250

Maximum lifting height (±100)
mm
7150

Maximum forward reach (±100)
mm
3600

Center distance of load
mm
600

Luffing angle (±1º)
°
-3~65

Inclination of fork carrier (forward (±1.5)/backward (±1))
°
90/17.5

Maximum traction force
KN
70

Wheelbase (±2%)
mm
2985

Wheeltread (±2%)
mm
1840

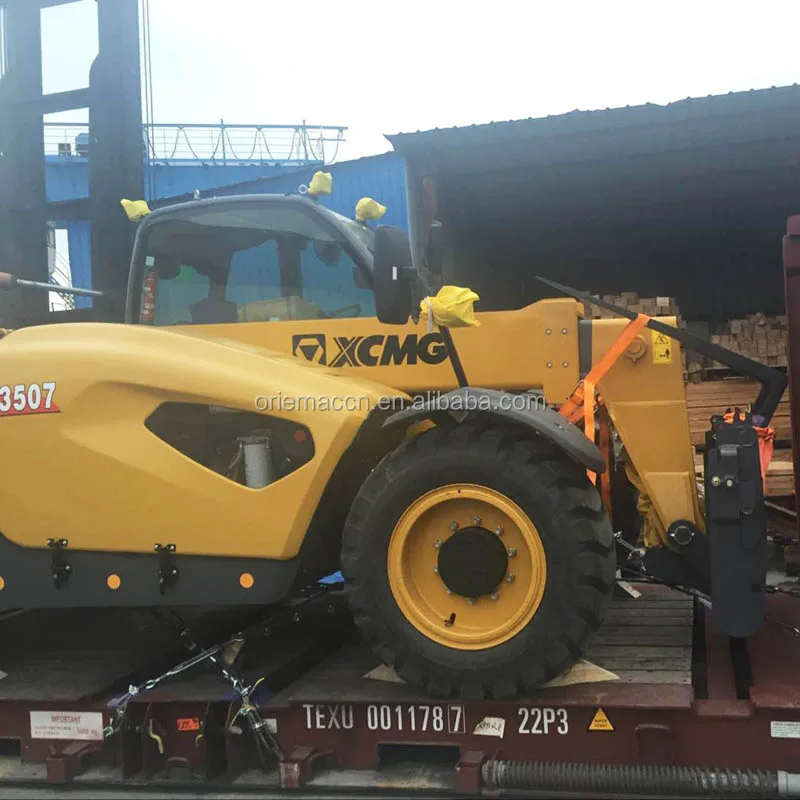

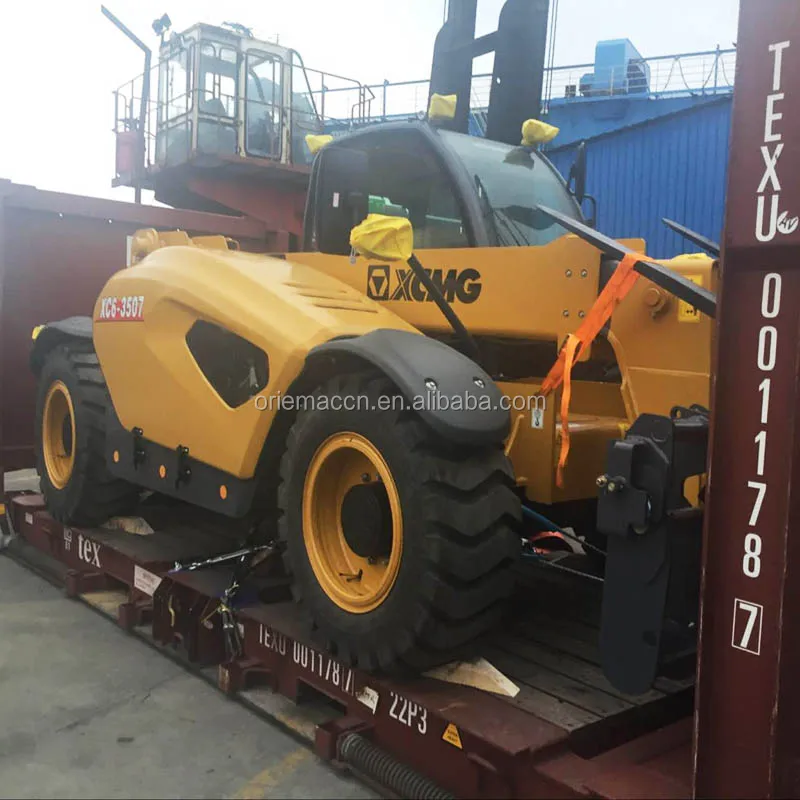

Photos of 3.5 Ton XC6-3507 telescopic handler telescopic loader handler for sale
